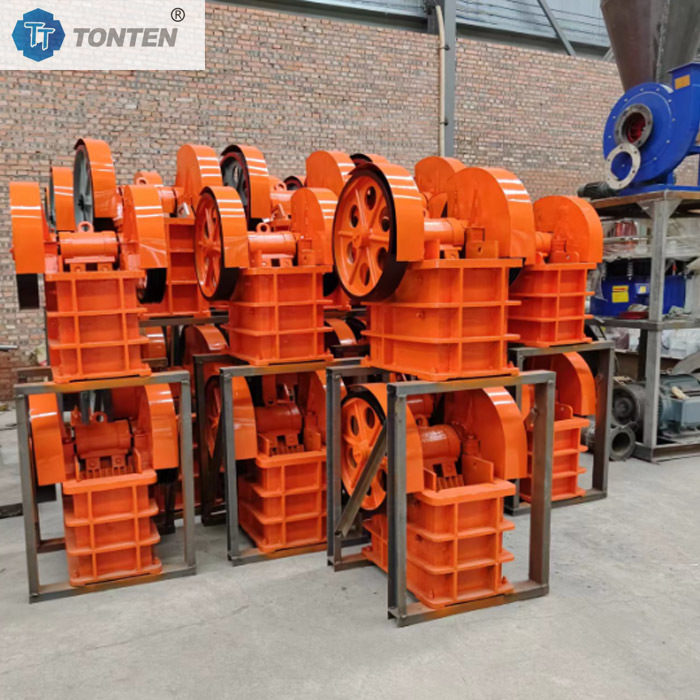

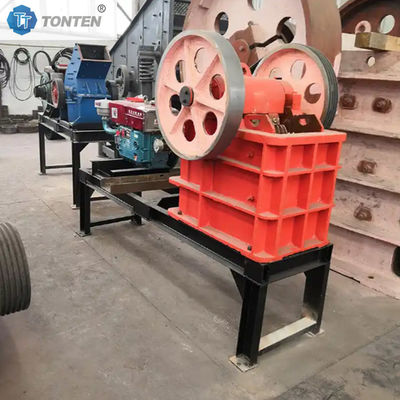

Concrete Granite Jaw Crusher Machine Small Portable Jaw Crusher

Concrete Granite Jaw Crusher Machine Small Portable Jaw Crusher

Applications:
Jaw crushers are widely used in mining, sand and gravel plants, and building material manufacturing.
Ore crushing: Initially crushes ore in mines to achieve the desired particle size for subsequent beneficiation.
Sand and gravel production: Sand and gravel production yards produce sand and gravel for construction to meet market demand.
Construction: TONTEN jaw crushers provide high-quality aggregates for infrastructure construction, ensuring building quality.

Operating Principle:
The operating principle of a jaw crusher is relatively simple, primarily relying on the relative motion between its two jaws to crush materials. Its operation can be divided into the following steps:
Feeding: Material enters the crushing chamber through the feed inlet.
Crushing: As the movable jaw moves downward, the material is squeezed between the fixed and movable jaws, gradually crushing it.
Discharge: Crushed material is discharged from the jaw crusher's discharge port to the desired particle size.

Structural Components:
Frame: Supports the entire equipment and withstands the various forces involved in the crushing process. Jaw plate: A jaw crusher consists of a movable jaw and a fixed jaw, responsible for crushing the material.
Eccentric shaft: The mechanism that drives the movable jaw up and down.
Transmission: Transmits the motor's rotational motion to the eccentric shaft.
Adjustment: Adjusts the size of the discharge port to change the particle size of the crushed material.

Features:
1. Simple Structure: The jaw crusher features a simple design for easy operation and maintenance.
2. High Crushing Efficiency: It can efficiently crush large materials with a high crushing ratio.
3. Durability: The jaw crusher is made of high-strength materials, offering excellent wear resistance and durability.
4. Easy Maintenance: The well-designed jaw crusher body facilitates easy maintenance and component replacement.
5. Low Energy Consumption: The optimized design improves crushing efficiency, reduces energy consumption, and offers excellent economic benefits.
6. Flexible Adjustment: The jaw crusher can easily adjust the size of the crushed material by adjusting the discharge port.
7. Stable Operation: The jaw crusher operates smoothly and quietly, making it suitable for long-term continuous production.

Jaw crusher machine specification:
